01 Product Description

YDS series liquid nitrogen tank is a convenient and lightweight liquid nitrogen storage container designed for users with small sample sizes, long-term storage, and low liquid nitrogen consumption. This series of liquid nitrogen containers has a small diameter and extremely low liquid nitrogen volatilization. Mainly used for livestock artificial insemination and frozen animal sperm.

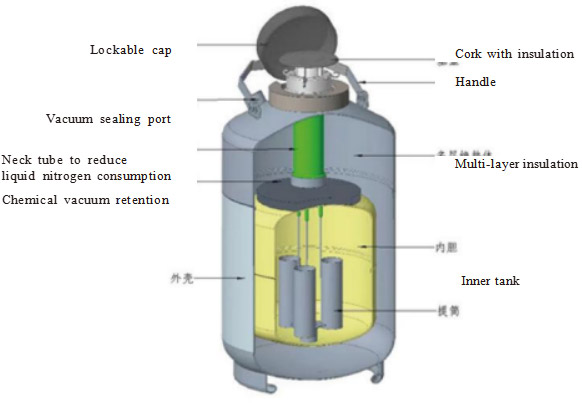

YDS-series-liquid-nitrogen-tank-3

02 Product Advantage

Suitable for long-term storage of small samples, stored in liquid nitrogen at -196 ℃
Low volatility of liquid nitrogen and simple maintenance
High strength aluminum structure, lightweight and easy to use
Standard lock cover to ensure sample safety
Capacity available from 2 liters to 50 liters

03 Product Parameter

Type For Storing
Model	Capacity(L)	Mouth D(mm)	Outside D(mm)	Height(mm)	weight(kg)	Effective Days (d)	Canister Outer Diameter(mm)	Canister Height(single/double) (mm)	Straw Holding Capacity(single level)		Straw Holding Capacity(double level)		Number of Canisters(n)
Model	Capacity(L)	Mouth D(mm)	Outside D(mm)	Height(mm)	weight(kg)	Effective Days (d)	Canister Outer Diameter(mm)	Canister Height(single/double) (mm)	0.5ml	0.25ml	0.5ml	0.25ml	Number of Canisters(n)
YDS2-35	2	35	220	428	2.7	29	30	120	105	220	-	-	3
YDS-3	3.15	50	224	425	3.2	30	36	110	132xn	298xn	-	-	6
YDS-6	6	50	285	460	4.4	60	36	110	132xn	298xn	-	-	6
YDS-10	10	50	305	530	6	100	36	110	132xn	298xn	-	-	6
YDS-10A	10	50	305	605	7.6	110	38	110/260	132xn	298xn	214xn	472xn	6
YDS-13	13	50	305	605	7.6	126	38	110/260	132xn	298xn	214xn	472xn	6
YDS-15	16	50	355	600	8.2	157	38	110	132xn	298xn	~	~	6
YDS-20	21	50	355	620	9	193	38	110/260	132xn	298xn	214xn	472xn	6
YDS-30	31.5	50	455	670	13.6	293	38	110/260	132xn	298xn	214xn	472xn	6
YDS-35	35.5	50	455	720	17	323	38	110/260	132xn	298xn	214xn	472xn	6
YDS-47-127	47	127	500	700	22	130	60	276					6
YDS-50	50	50	495	855	19.5	423	38	110/260	132xn	298xn	214xn	472xn	6
YDS10-80	10	80	305	530	6.8	57	60	125	360xn	846xn	~	~	6
YDS15-80	16	80	360	586	8.2	96	60	125	360xn	846xn	~	~	6
YDS20-80	20	80	360	595	9	150	60	125	360xn	846xn	~	~	6
YDS30-80	31.5	80	455	670	14.6	158	60	276	360xn	846xn	604xn	1446xn	6
YDS35-80	35.5	80	455	740	16.8	187	60	276	360xn	846xn	604xn	1446xn	6
YDS50-80	50	80	495	855	19.5	235	60	276	360xn	846xn	604xn	1446xn	6
YDS30-125	31.5	125	455	690	16.8	110	95	230	854xn	1992xn	1508xn	3324xn	6
YDS35-125	35.5	125	455	740	16.8	118	95	280	854xn	1992xn	1508xn	3324xn	6
YDS50-210	50	210	560	900	27.8	93	-	-	-	-	-	-	-
YDS100-210	100	210	560	1100	31.2	115	-	-	-	-	-	-	-
Type For Transportation
Model	Capacity(L)	Mouth D(mm)	Outside D(mm)	Height(mm)	weight(kg)	Effective Days (d)	Canister Outer Diameter(mm)	Canister Height(single/double)	Straw Holding Capacity(single level)		Straw Holding time(double level)		Number of Canisters(n)
Model	Capacity(L)	Mouth D(mm)	Outside D(mm)	Height(mm)	weight(kg)	Effective Days (d)	Canister Outer Diameter(mm)	Canister Height(single/double)	0.5ml	0.25ml	0.5ml	0.25ml	Number of Canisters(n)
YDS-10B	10	50	305	530	6.2	64	38	110	132xn	298xn	-	-	6
YDS-30B	31.5	50	455	670	14.2	182	38	110/260	132xn	298xn	214xn	472xn	6
YDS-35B	35.5	50	455	720	17.4	203	38	110/260	132xn	298xn	214xn	472xn	6
YDS-50B	50	50	500	850	19.4	252	38	110/260	132xn	298xn	214xn	472xn	6
YDS30B-80	31.5	80	455	670	15	131	60	276	360xn	846xn	604xn	1446xn	6
YDS30B-125	31.5	125	455	690	17	60	95	230	854xn	1992xn	1508xn	3324xn	6
YDS50B-80	50	80	500	850	19.2	163	60	276	360xn	846xn	604xn	1446xn	6
YDS35B-125	35.5	125	455	740	17.2	92	95	280	854xn	1992xn	1508xn	3324xn	6
YDS50B-125	50	125	500	850	21.6	132	95	280	854xn	1992xn	1508xn	3324xn	6
YDS50B-210	50	210	500	850	21.4	80
YDS100B-125	100	125	560	1110	29.8	264	95	280	854xn	1992xn	1508xn	3324xn	6
