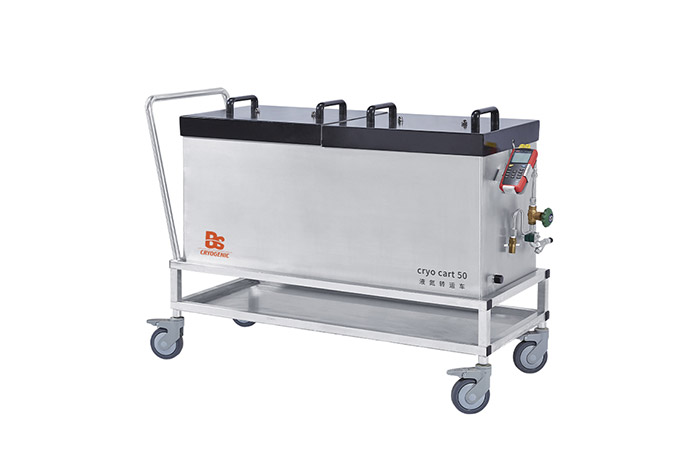

Cryogenic Cart

CryoCart-II can be used as a portable workbench or transportation cart with -150 °C cryogenic vapor protection.When used as a portable workbench, the cryogenic protection holdover time is up to 8 hours with lid open.

Send Email Share With:

Facebook Twitter LinkedIn Pinterest Share

01 Product Description

CryoCart-II can be used as a portable workbench or transportation cart with -150 °C cryogenic vapor protection

When used as a portable workbench, the cryogenic protection holdover time is up to 8 hours with lid open

When used as a transportation cart, large quantity of biological products can be transported from one place to another place within the facility. For instance, to

move samples from one freezer to another freezer, or to move frozen samples from controlled rate freezer to cryogenic freezer, etc

Biological products can be loaded into the cart with canes, cryogenic boxes or inventory racks conveniently. A 15-layer square rack can be loaded into the cart. Therefore, it can meet space requirements of most of circumstances

02 Product Advantage

-150°C vapor phase environment for operation or transportation.
Cover can be magnetically attached on cart for convenient operation.
Temperature recorder is supplied with cart
SUS304 material for easy cleaning.
Large casters for easy movement

03 Product Parameter

Model	Cryo-Cart 2
Liquid nitrogen capacity below platform (Liter)	24
Holdover time (≤-150) with cover closed (hour)	24
External dimensions, L x W x H (mm)	1410 x 515 x 980
Internal dimensions, L x W x H (mm)	1015 x 304 x 400
Platform height (mm)	130
Weight empty (kg)	155
Weight full (kg)	180
Cart body material	SUS304
Data logger	Yes
Liquid nitrogen inﬂow port	CGA 295
Number of 81/100-place cryogenic box	30 (15-layer rack x 2 pcs)
Number of 2ml vial	3000
Number of 25ml blood bag	273
Number of 50ml blood bag	148
Number of 250ml blood bag	125
Number of 500ml blood bag	39

04 Inquiry

05 Related Products

Liquid nitrogen

For customers in research,cell and gene therapy,vaccine production,and biobanking,the CryoVita CRF provides precise,repeatable freezing results that protect the sample from intracellular freezing.

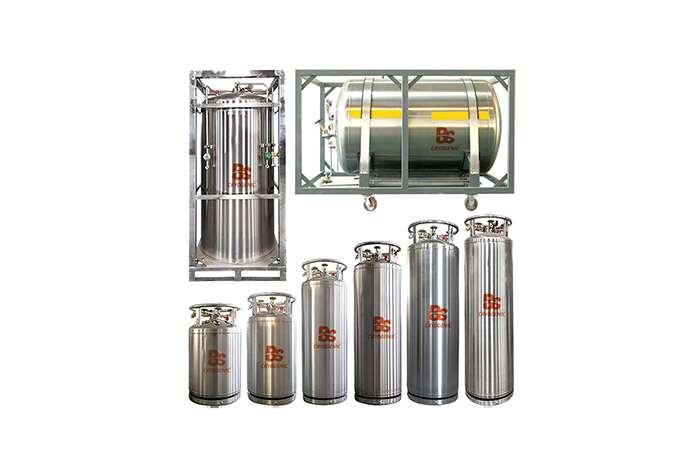

Liquid Cylinders

The maximum filling amount is calculated based on the boiling point of the liquid at normal atmospheric pressure. The actual filling amount is affected by the temperature of the liquid and the pressure inside the container, and is about 95% of the maximum theoretical filling amount. Natural gas is 90%

Self pressurized liquid nitrogen container

The self pressurized liquid nitrogen container is made of high-quality stainless steel, and the internal pressurization system of the container is used to vaporize a small amount of liquid nitrogen and generate pressure, thereby discharging the stored liquid nitrogen inside the container.

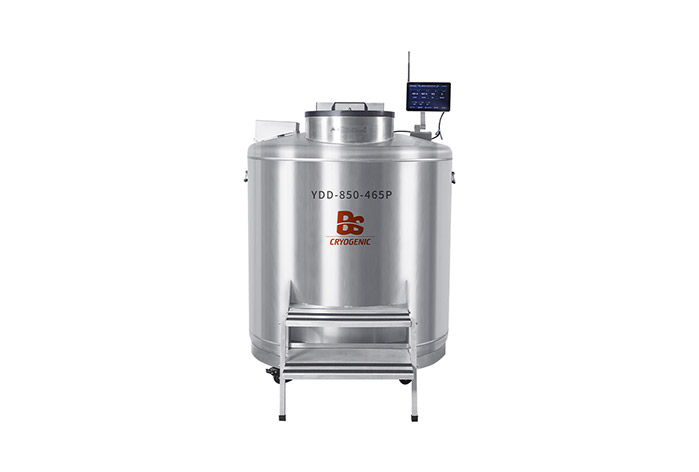

CRYOBIO BANK series
